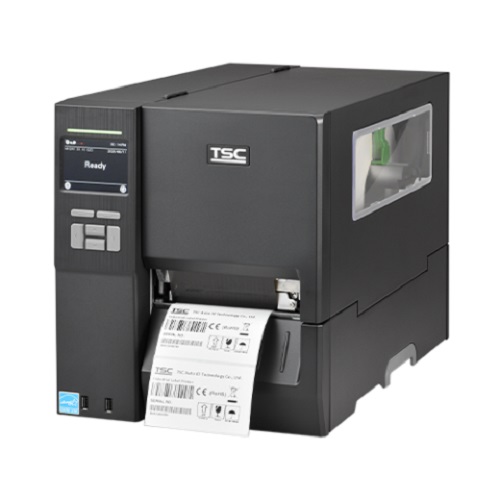

TSC MH Barcode Label Printer

Feature

MH240

MH340

MH640

 Resolution

 8 dots/mm (203 DPI)

 12 dots/mm (300 DPI)

 24 dots/mm (600 DPI)

 Printing Method

 Thermal Transfer & Direct Thermal

 Max. Print Speed

 356 mm (14”)/second

 305 mm (12)/second

 152 mm (6)/second

 Max. Print Width

 104 mm (4.09“)

 Max. Print Length

 25,400 mm (1,000”)

 11,430 mm (450”)

 2,540 mm (100”)

 Enclosure

 Die-cast print mechanism and base with a bi-fold metal cover with large clear media view window

 Physical Dimensions

 276 mm (W) x 326 mm (H) x 502 mm (D) / 10.87” (W) x 12.83” (H) x 19.76” (D)

 Weight

 15.35 kg (33.84 lbs)

 Label Roll Capacity

 203.2 mm (8”) OD

 Internal Rewinder

 Full roll

 Internal Rewinding Kit (Dealer Opt.)

 5” O.D.

 Ribbon

 600 m long, max. OD 90 mm, 1” core (ink coated outside or inside)

 Ribbon Width

 25.4 mm ~ 114.3 mm (1” ~ 4.5”)

 Processor

 32-bit RISC CPU

 Memory

 512 MB Flash memory, 256 MB SDRAM, micros Flash memory card reader for Flash memory expansion (up to 32 GB)

 Interface

·         RS-232

·         USB 2.0

·         Internal Ethernet (10/100 Mbps)

·         USB host * 2 (for scanner or PC keyboard)

·         GPIO + Getronics (factory option)

·         Bluetooth (factory option), Slot-in 802.11 a/b/g/n wireless (dealer option)

 Power

 Internal switching power supply Input:

·         AC 100-240V

·         4-2A, 50-60Hz, Output: DC 5V

·         5A; DC 24V

·         7A; DC 36V

·         1.4A; Total 243W

 LCD

 TFT color display, 320 x 240 pixels

 Operation Switch/Button/LED

·         1 power switch

·         6 operation buttons (2 function keys and navigation buttons)

·         1 LED with 3 colors (red, green, amber)

 Sensors

·         Gap transmissive sensor (position adjustable)

·         Black mark reflective sensor (position adjustable)

·         Head open sensor

·         Ribbon encoder sensor

·         Ribbon end sensor

 Real-Time Clock

 Standard

 Internal Fonts

 8 alpha-numeric bitmap fonts

Monotype Imaging® true type font engine with one CG Triumvirate Bold Condensed scalable font

 Bar Code

·         1D and 2D bar codes including Code 39

·         Code93

·         Code128UCC

·         TLC39, CODABLOCK F mode

·         Maxi code, QR code

·         Aztec, PDF-417

·         Micro PDF 417, GS1 Data Matrix

·         GS1 Data Bar (RSS barcode), etc.

 Font and Barcode Rotation

 0, 90, 180, 270 degrees

 Printer Language

 TSPL-EZD (Compatible with EPL, ZPL, ZPL II, DPL)

 Media Type

 Continuous, die-cut, black mark, fan-fold, notch, perforated, tag, care label (outside wound)
